Machines

Our Current Equipment Includes

1-6661cd3183ff9_toledo_he__Balanced
Screen

Intuitive Touch Screen

Operated with magmah Touch software.

Screen

Test Plans

 OE test plans
with validated limits
for all test conditions.

Screen

Splash Guarding

Each injector is secured into
place to fully seal the
nozzle for testing.

Screen

Unique Installation

Each injector is secured into
place to fully seal the
nozzle for testing, thanks to
two quick clamping levering arms.

Screen

Hydraulic Electronic Unit
Injector Testing Made Easy

We have developed a platform which has
unparalleled benefits for the workshop
and covers most of the
HEUI injector parc.

Screen

Application Kits

 7 application kits
are required to
test the majority of HEUI
injectors.

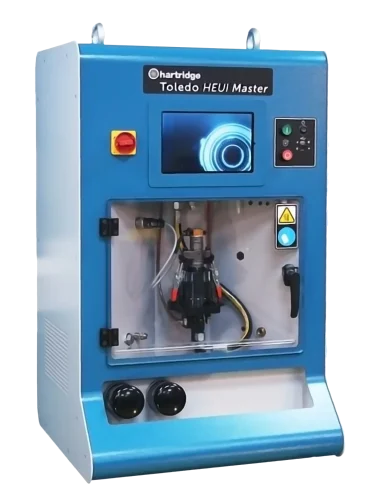

Hartridge Toledo HEUI MASTER​

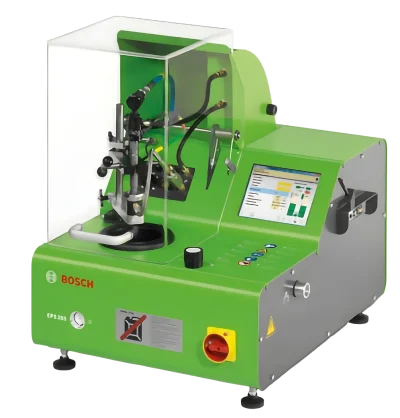

EPS 205 BOSCH

eps 205


Automatic test bench

For CRI Piezo (Bosch, Denso, Siemens, Continental), Solenoid valve CRI (Bosch), Solenoid valve CRIN (Bosch), Solenoid valve CRI (third-party manufacturers), DHK/UI nozzles



Economical testing of common-rail diesel injectors and conventional nozzle- and-holder assemblies



Integrated suction device for minimal oil misting

Easy to keep the workshop environment clean and comfortable for technicians



Universal clamp

Quick, no-fuss clamping of all injector types



Clear and accurate results

Demonstrate your expertise and service level to customers with a printed test report



Built-in database

Integrate vehicle data and test values within efficient workflows



Intuitive interface

Straightforward for technicians to learn and use with confidence



200 V and 400 V options available

Choice that suits your workshop set-up

EPS 205 BOSCH

uts  1004

Screen

Adjustable cam stroke

Provides testing being as close to as standard working conditions of the injector.
UTS 1004 patented Cam Box allows to set the cam stroke without:
• draining oil
• removing cam
• adjusting timing

Screen



SRT Meansurement

UTS1004 is capable to measure the
Solenoid Response Time. SRT value
determines the condition of the solenoid,
assembly of the control valve with the
spring tension and valve stoke.

Screen

Easy user interface with test plancreate and calibrate function

Easy user interface with test plan create and celibrate function

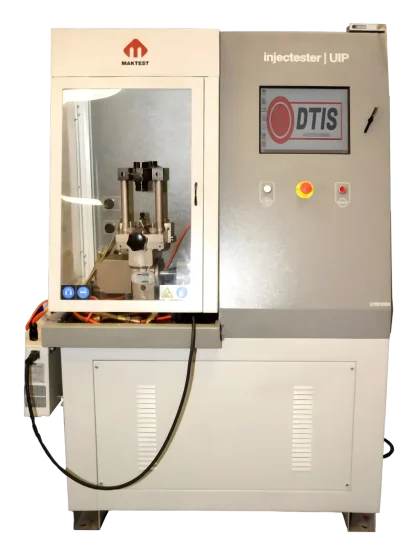

MAKTEST INJECTESTER UIP

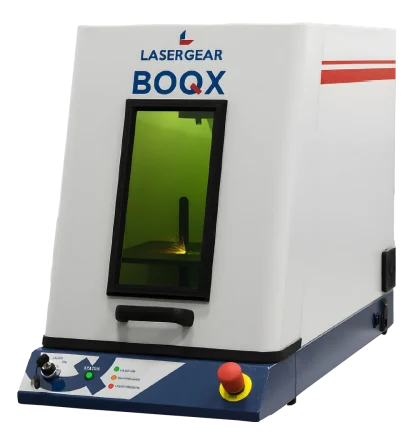

LASER GEAR BOQX

BOQX
Screen

Compact Benchtop Enclosure

BOQX is a compact Class 1 laser enclosure, providing safe operator use without the need for protective eyewear.
Screen

Focus Finder Tool

Easily focus BOQX by aligning the two red laser dots on the surface of your material using the standard power focal height adjustment.
Screen

Touchscreen Pendant

An optional touchscreen control pendant is available for handheld control of BOQX, including focus control.

LASER GEAR BOQX

maquina5

Screen

Higher Pressure

New Hydraulic System is capable to provide 300 Bar Test Oil Pressure at max 4 L/min flow rate.

Screen

Standard Test Oil

Use ISO4113 to test HEUI injectors with precision.
Screen

Automatic High Pressure Setting

New Hydraulic System sets pressure automatically, testing continues without interruption.

Screen

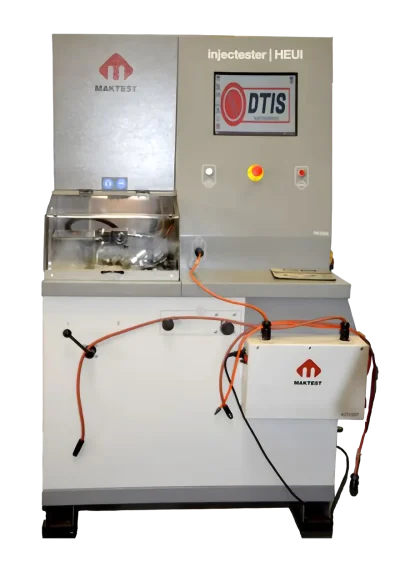

Hydraulic Electronic Unit Injector Tester

TK1024.03 injectester HEUI is redesigned in accordance to the developments in HEUI technology.

Screen

Much Faster Testing



MAKTEST INJECTESTER HEUI

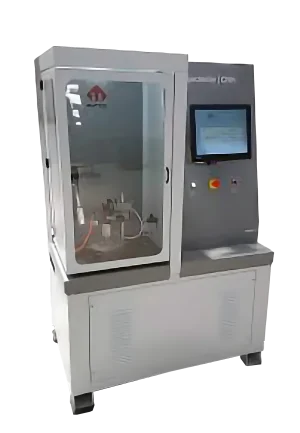

MAKTEST INJECTESTER CRH

machine
Screen

Heavy-duty common rail injector test stand

Simple setup with a reinforced clamping mechanism helps reduce overall test time.
Screen

TK1029 injectester CRH

TK1029.02 Injectester CRH is designed for testing high pressure and high volume injectors. Its metering capacity is up to 2000 mm3/stroke

Screen

Independent solution provider for diesel injection problems

4000 kw power are tested precisely on new tk1029.02 new clamping system and spacious injector cabinet allows to mount various geometry injectors.

Screen

An easy solution for a big problem

Screen

Maktest injectester CRH

TK1029 injectester CRH is capable to test all injectors for passenger car, light commercial and of course truck engines.

MAKTEST INJECTESTER CRH

maquina8
Screen

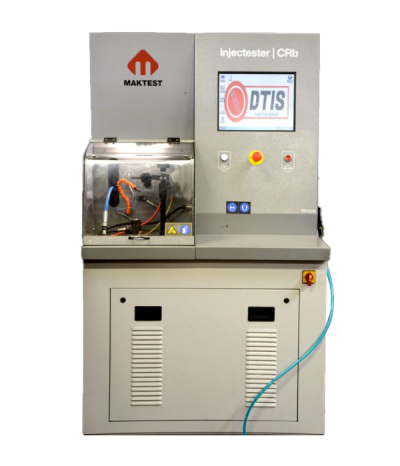

Maktest inectester CRB

TK1026.03, the new metering system is faster and capable of measuring larger injectors.

Screen

Difference from previous versions

Up to 1000mm3 / stroke. Unlike previous versions, TK1026.03 shows instantaneous delivery and return results from the injector.

Screen

Fast and accurate measurement system

The CMS metering system shows instantaneous delivery up to 1000 mm3 per injection flow rate.

Screen

Designed for longer and larger injectors to come

The higher and wider working area is designed for the new injectors to come.

Screen

Touch to control

Screen

Automatic testing

 The test procedure is performed automatically and a summary of the test report is displayed on the screen when the test is completed.

MAKTEST INJECTESTER CRB

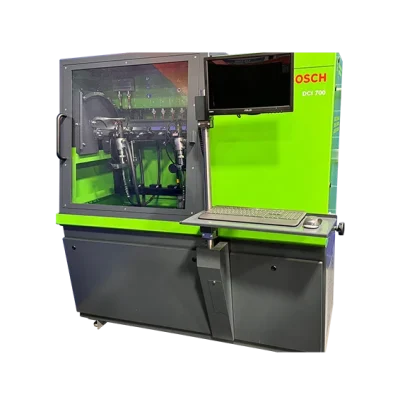

BOSCH DCI 700

dci-700


Time savings due to quick setup and 15-minute test time



High efficiency thanks to the patented swivel rail concept: no need for vulnerable high-pressure piping, reduced maintenance costs and easy configuration

Increased quality, reliability and transparency of Bosch injectors through fast and accurate testing, including IMA/NIMA coding

Ability to test Common Rail injectors with state-of-the-art VCC (Valve Closing Control) and NCC (Needle Closing Control) technologies for EURO 5 and EURO 6

Elimination of the use of additional accessories due to automatic adjustment of the return backpressure

Always up to date thanks to regular online updates

Ergonomic design with sloping bottom, allowing for greater standing proximity and thus greater working comfort on the test stand

Modular retrofit kits for commercial vehicles and off-highway common rail injectors - from Bosch and other manufacturers

BOSCH DCI 700

WEB-TK1022-R-1
Screen

The TK1022 is a multi-purpose tester for many types of diesel injectors and can test common rail injectors, double stage (double spring) injectors and mechanical injectors.

Screen

Its simple and ergonomic design helps services perform fast and reliable testing on all models of CR injectors.

Screen

The injector’s pressure holding capability is easily interpreted from the graph of the pressure change.

Screen

TK1022 saves precious time and effort for better purposes.

Screen

TK1022 injectester CR Manual is a simple, hand-operated test stand for initial testing of the common rail injectors.

MAKTEST TK1022

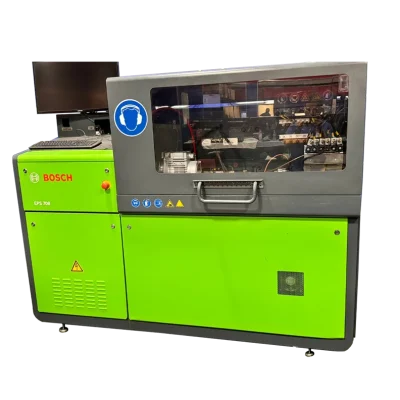

BOSCH EPS 708

epa-708
Screen

Designed for CP1, CP3, CP pumps (Delphi, Denso, Siemens), CRI solenoid valve injectors (Bosch, Delphi, Denso), CRIN solenoid valve injectors (Bosch), CRI Piezo (Bosch, Siemens, Denso): dedicated and versatile test bench

Screen

Rail designed for pressures up to 2,500 bar: Be prepared and extend your current test pressure level (2,200 bar) with the additional kit as diesel technology develops for the future.

Screen

Motor shutdown function: Safety first! Opening the gate immediately shuts off the motor to protect users

Screen

Electronic monitoring of service level intervals: Keep the test bench running at its most efficient level.

Screen

Optional integrated cooling system - an efficient way to use less water

Screen

Integrated database: the most important values for efficient workflows

Screen

Intuitive interface: simple for technicians to learn and use with confidence

Screen

Clear and accurate results: Demonstrate your expertise and level of service to customers with a printed test report (optional printer).

BOSCH 708

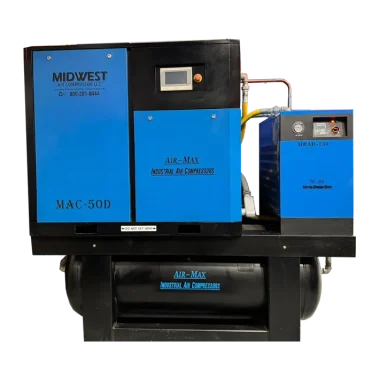

compressor
Screen

Rated voltage: 220 V, 230 V, 240 V, 460 V

Screen

Rated horsepower 50 hp (37 kW)

Screen

Current phase 3 Phase

MAC-50D

Model 2734​

air-machine

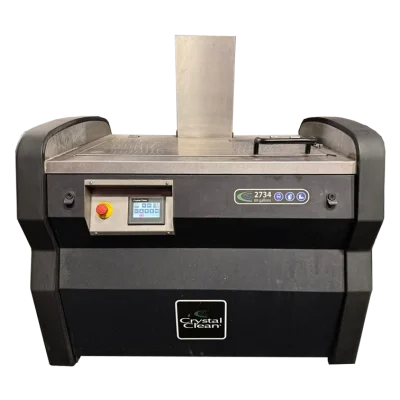

The model 2734 ultrasonic parts cleaner

is an automated, high efficiency cleaner that utilizes high frequency soundwaves for in-depth pecision cleaning to break down soils in every nook and cranny.

The simple to use

Programmable cleaner takes what once were hours-long, labor intensive, cleaning, efforts and speeds up the process to take as little as 15 minutes.

Model 2734

The ultrasonic parts washer has a 60g tank and 10g auxiliary reservoir made of stainless steeel

Industrial plants

Precision Cleaning

Maintenance Operations

Model 2734​

tm514

Screen

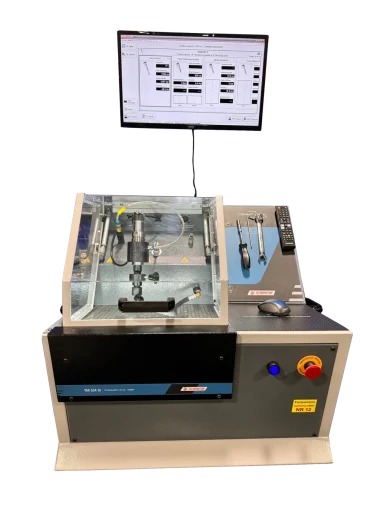

TM 514 III

TM 514 Common Rail test is used for testing on diesel injection system devices, more specifically common rail systems.

Screen

Injector testing

Test one injector at a time, inductive or piezoelectric, checking your electrical and mechanical conditions. For the mechanical conditions, a leakage test and flow test are performed on each injector, measuring the injection and return flow
Screen

Pressure sensor test

Test pressure sensors with ease and precision
Screen

Leak test

Performs the pressurization of injector without trigger them to visual check of leaks in nozzles and connections
Screen

The COMMON RAIL PC FAST

software already comes with the largest database in Brazil and is constantly updated. Friendly operation interface, easy to interpret and use.

TM 514 III

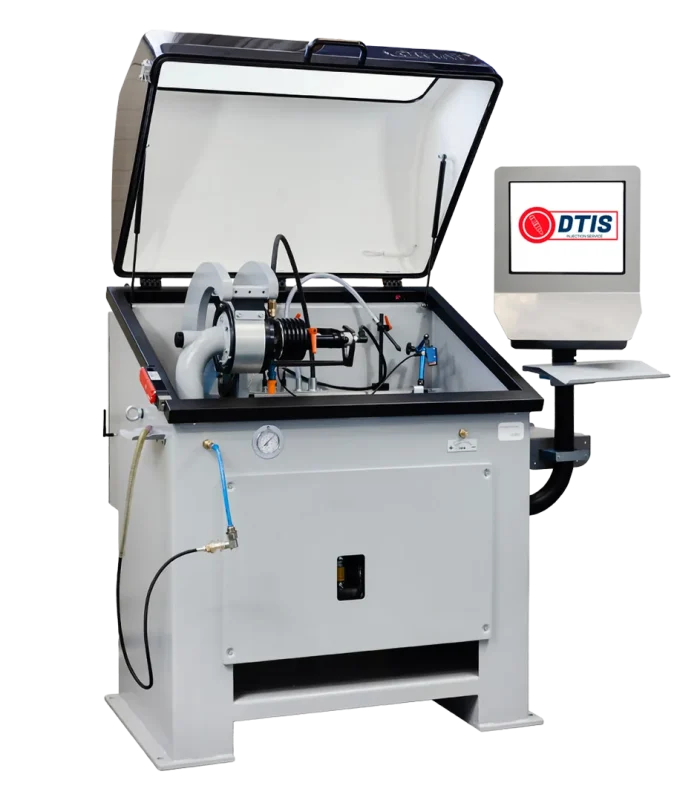

CORE BALANCER CMT-48 VSR BIG TWIN

maquina6
Screen

CMT-VSR is a long-life balancing machine that is incredibly accurate, efficient and user friendly.

Screen

The unit on the right side

Used for balancing of turbocharger core assemblies of vans and heavy duty trucks with a maximum weight of 16 kg.

Screen

All-in-one solution

Allows our customers to balance turbocharger core assemblies on passenger cars, commercial vehicles, construction equipment using a single machine.

Screen

Validated in more than 2,000 workshops worldwide

Screen

Cost-saving universal adapter system rotates rotors with a minimum amount of compressed air

Screen

Designed for passenger cars and trucks

CORE BALANCER CMT-48 VSR BIG TWIN

maquina9
Screen

The WCB-30 is manufactured with reliable solid-state electronics

Screen

Lightweight workpiece carriers, permanent magnet DC motor drive system, linear analog meter, and adjustable support bars.

Screen

The design of every TURBOCHARGER has a specific ACCURACY of BALANCING in each rotor assembly.

Screen

The model WCB-30 allows to determine the quantity and location of the imbalance, as well as to make the proper corrections

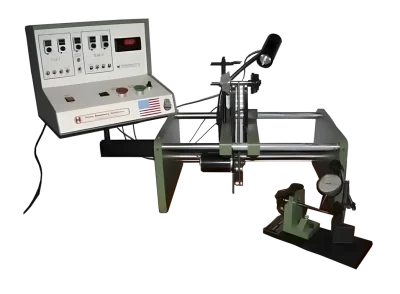

WCB - 30

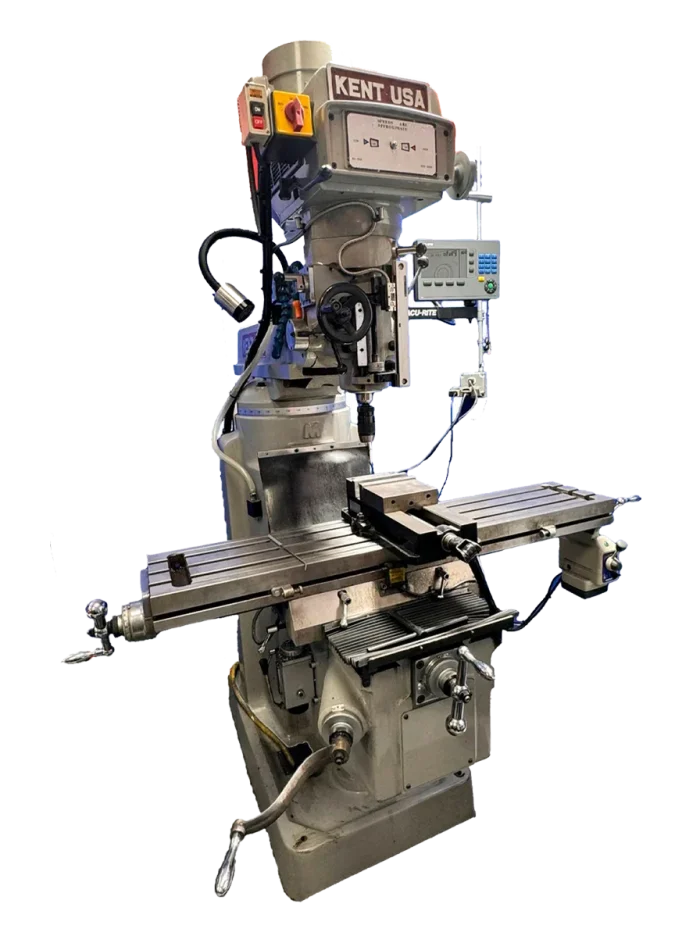

KENT USA KTM-3VK

maquina

Milling Machine

The milling machine is a multitasking machine for industrial use, consisting of a horizontal or vertical axis on which rotates a cutting tool called a milling cutter, this machine has a horizontal table on which a workpiece is placed or fixed to give it a specific shape.
Screen

Advantage

The main advantage of using the industrial milling machine as a cutting tool lies in the variety of heads we can use for cutting and shaping.
Screen

In the body we can find the motor and the computer where we program the cut.

Screen

The spindle, which connects the machine to the spindle, also has the work table and even a small lamp to see at all times the cutting of the material to be machined.

Screen

The heads perform the cutting or beveling, depending on the depth we give to the cut. There are different types of cutters, depending on the material to be cut and the shape of the cut.

KENT USA KTM-3VK​

machine
Screen

5 HP main spindle motor

Screen

36-1800, 12 steps spindle speeds

Screen

Hardened and ground gears and bedways

Screen

Cast iron machine bedways with full one piece cast base and front loading chip tray for easier cleaning

Screen

Foot brake and T-Slot compound Inch/metric reading on dials

Screen

Inch/metric ruler on tailstock quill

Screen

ISO 9001 certified manufacturer

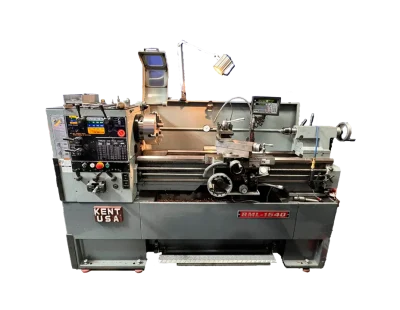

KENT USA RML-1640T

Turbo test expert

machine4

Turbo test expert

This model of the machine enables you to restore 100% turbocharger's performance by its calibration according to turbocharger's pressure ratio measured under load at high speeds

The pressure ratio is turbocharger's outlet parameter that defines its performance

It enables the technical condition and its most accurate calibration

Turbo test expert
